Total separators for combined separation

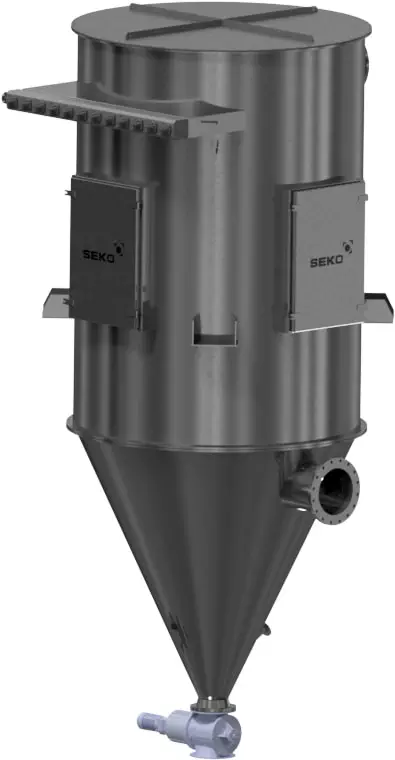

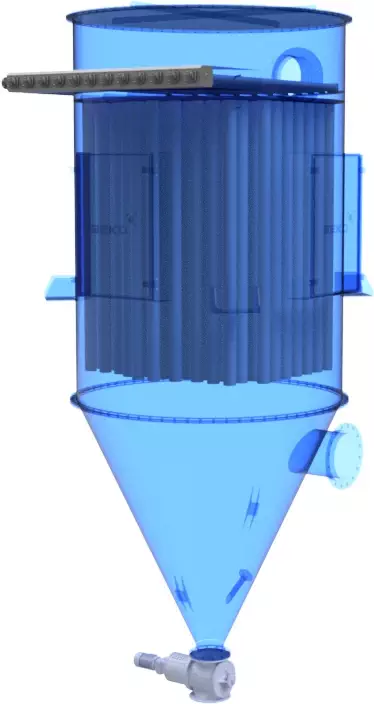

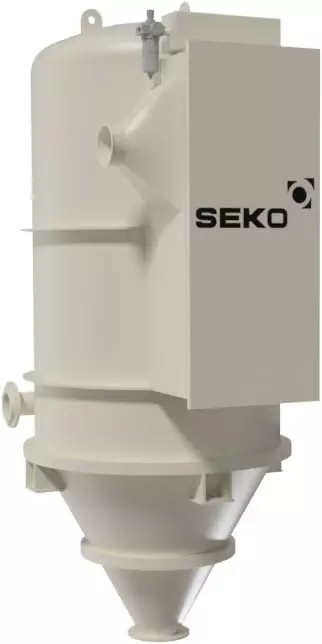

The JET-C model total separator is a pneumatically cleaned filter, available as a bag, tube or cartridge filter. It combines a pre-separation cyclone filter and a pneumatic cleaning filter placed above.
These fully automatic filters are designed to remove dust from continuous flows of highly dust-laden air.
| SEKO model | JET-CF with filter bags JET-CS with filter tubes JET-CP with filter cartridges |
| Filter element | Filter bag Filter tube Filter cartridge |
| Filter area | CF 3.8 – 96 m² plus CS 2.6 – 214 m² plus CP 3.0 – 428 m² plus |
| Volumetric flow rate | CF 300 – 14,000 m³/h plus CS 200 – 64,000 m³/h plus CP 100 – 40,000 m³/h plus |
| Shock pressure resistance | up to 10 bar plus |
| ATEX compliance | Optional |
Interested in this product or in a customised design?
